Xactimate Roof + 3D Wall Sketch (ESX)
With a deep understanding of Xactimate estimate workflows, our team delivers detailed, high-precision 3D sketches that reflect real-world measurements — helping contractors, adjusters, and restoration professionals save time, improve claim accuracy, and drive better results.
Whether you’re a roofing contractor, public adjuster, or restoration company, our tailored solutions support your end-to-end estimating process. From accurate aerial roof measurement to full Xactimate ESX file generation, MX Estimation is your go-to partner for dependable and scalable estimating services.

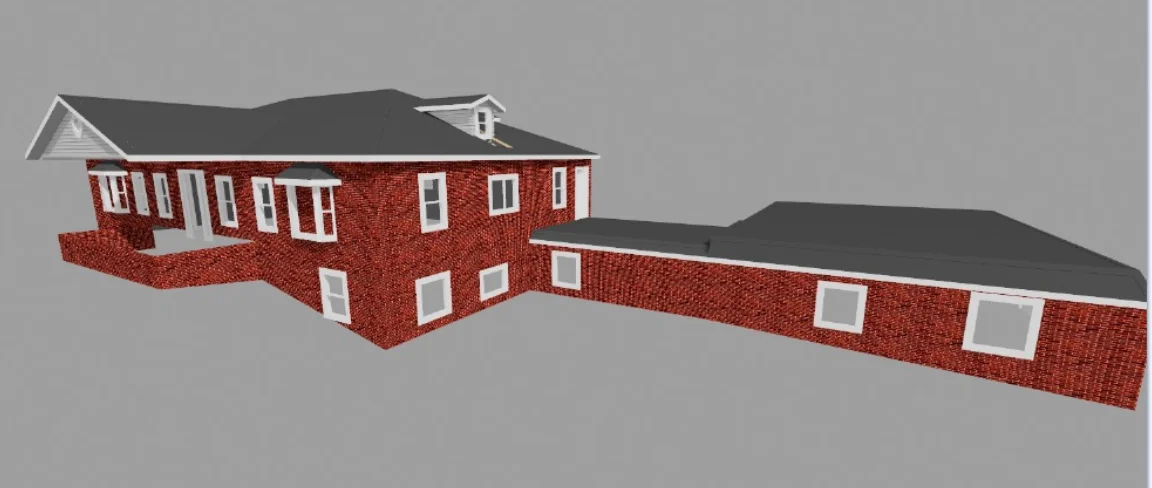

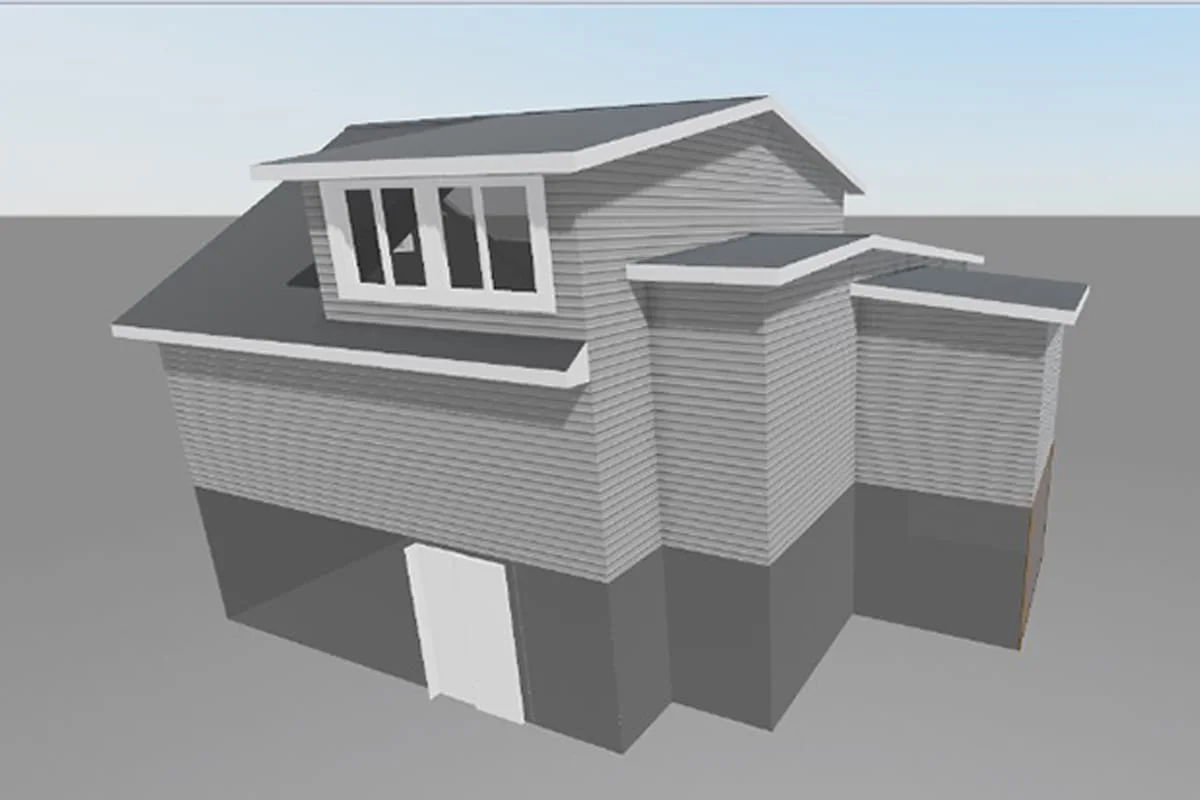

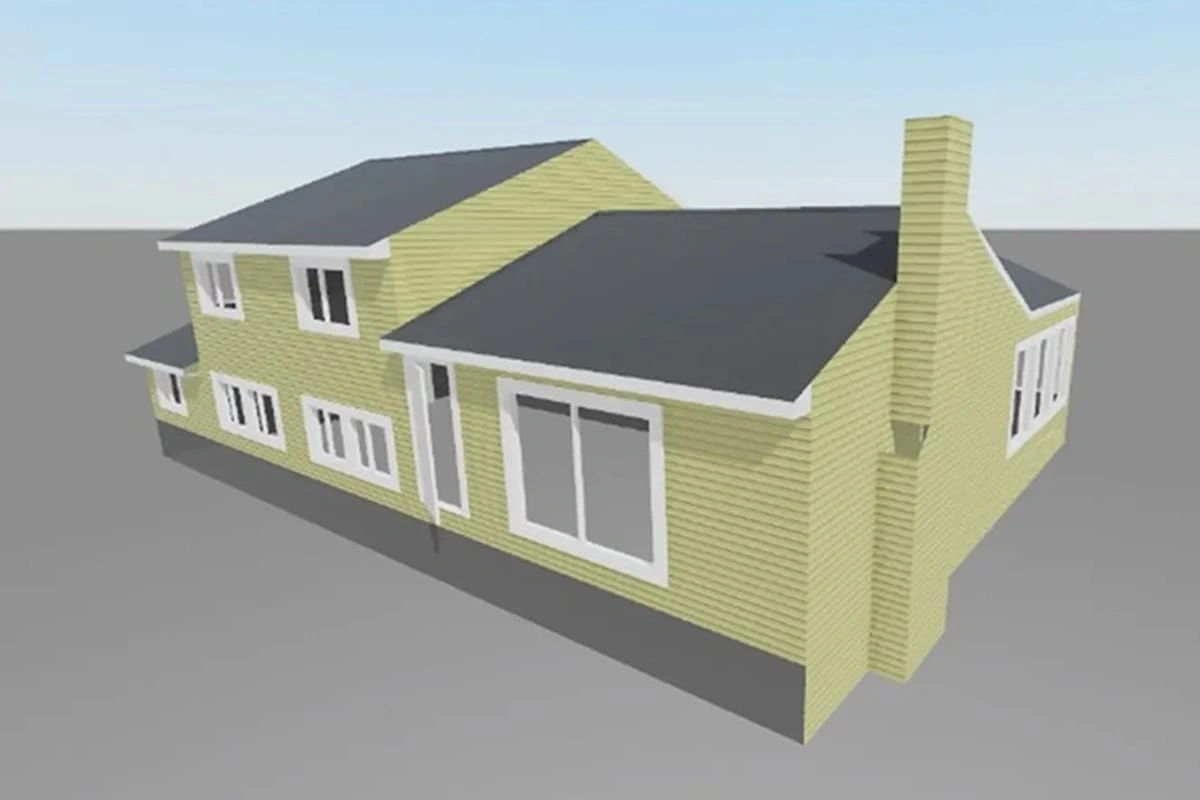

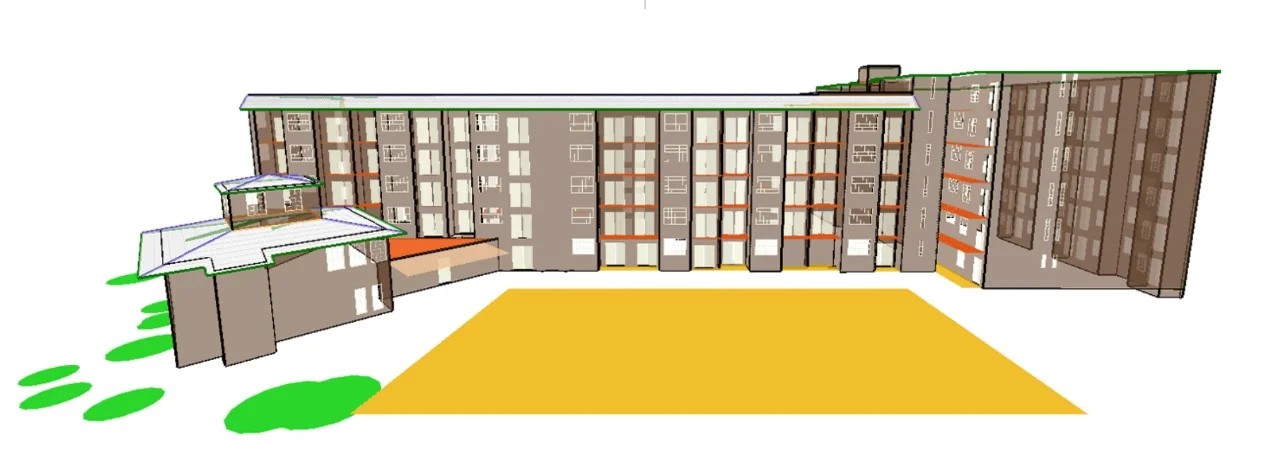

What Is a Xactimate Roof + 3D Walls Sketch (ESX)?
A Xactimate Roof + 3D Walls Sketch is a fully-rendered property diagram generated for use within the Xactimate platform. Delivered in ESX file format, it includes all structural components — such as roof dimensions, wall elevations, pitch angles, and more — with complete spatial accuracy.
Why Choose MX Estimation?
Our team is made up of certified estimators and construction professionals with years of experience in the insurance restoration space. We understand what matters when it comes to documentation, carrier expectations, and Xactimate compliance.
Seamless Integration with Xactimate
Every ESX file we deliver is fully compatible with Xactimate. Simply import it, assign line items, and your estimate is good to go — no need to redraw or remeasure anything.
Aerial Roof Measurements You Can Trust
I nsurance adjusters speak the language of Xactimate. When you submit a claim with a clean, professional roof sketch in Xactimate, you’re speaking their language. It reduces back-and-forth, questions, and reinspections, dramatically speeding up the approval process.
Fast Turnaround, Always On Time
We understand that time is critical in the insurance and restoration industry. Delays can impact approvals, project timelines, and client satisfaction. That’s why we focus on delivering fast, reliable results without compromising on quality. Most sketch requests are completed within 24 hours or less, ensuring you can move forward with estimates, approvals, and project execution without unnecessary delays.
Scalable Support for Growing Contractors
As your workload increases, having a dependable back-end support system becomes essential. MX Estimation is built to scale alongside your business—whether you’re handling a few projects per week or managing high daily volumes. Our efficient workflow and experienced team ensure consistent quality across every sketch. This makes our services ideal for roofing contractors, public adjusters, and mitigation teams who need accurate, on-demand support to keep operations running smoothly.
What’s Included in Our Xactimate Sketch Package?
When you order a Roof + 3D Walls Sketch (ESX) from MX Estimation, you get more than just a drawing. You receive a comprehensive digital asset designed to speed up the entire claim lifecycle.
Your deliverable includes:
- Complete Roof Diagram with pitch, slopes, and overhangs
- 3D Wall Elevations with window/door placements
- Ridge, eave, rake, and valley details
- Floor plan alignment for easy scope writing
- Clean formatting for easy import into Xactimate estimate
- ESX File + PDF + Images (on request)
We also offer optional add-ons like satellite images, drone data integration, or combining our sketch with Professional Symbility Estimating Services if you’re working across multiple platforms.
Built on Data, Verified by Professionals
Our accurate aerial roof measurement data is pulled from high-resolution satellite imagery, drones, or architectural plans (where available). Every measurement is then validated by our trained professionals to ensure alignment with the property’s actual dimensions.
No more tape measures, manual pitches, or conflicting measurements — we deliver fully validated diagrams, so you can focus on what you do best: managing the job and getting paid faster.
Frequently Asked Questions (FAQ)
What is included in the Xactimate Roof + 3D Walls Sketch (ESX) provided by MX Estimation?
Our ESX sketch package includes a complete roof layout with pitch, slopes, eaves, ridges, and valleys, as well as 3D wall elevations showing window and door placements. You’ll receive a fully formatted ESX file ready for import into your Xactimate estimate, along with optional PDF and image files upon request.
How accurate are your aerial roof measurements?
We use high-resolution satellite imagery, drone data, and architectural resources to generate accurate aerial roof measurements. Every measurement is professionally verified by our in-house team to ensure real-world accuracy and eliminate discrepancies in your final estimate.
Who benefits from your Xactimate Roof + 3D Walls Sketch service?
Our sketch services are ideal for roofing contractors, general contractors, public adjusters, mitigation specialists, and restoration professionals using Xactimate for contractors or insurance estimating. It helps streamline claims, reduce field time, and improve approval rates.
Can I use your sketch services alongside Symbility or other estimating platforms?
Yes. In addition to Xactimate, we offer Professional Symbility Estimating Services for teams working across multiple platforms. Our flexible file delivery ensures compatibility and consistency regardless of your preferred estimating software.
